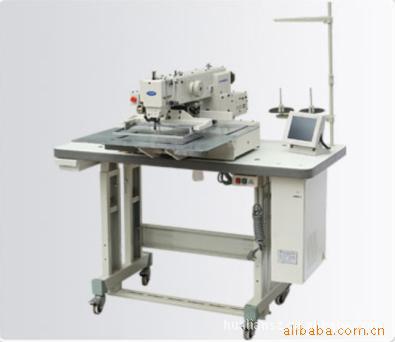

MODEL

RE-E2010R

Stitch  type

Single needle,lockstitch

Sewing area

(X)200mm×(Y)100mm

Max.sewing speed

2300rpm

Sewing speed selection

200~2300rpm

Feeding system

Intermittent or Continuous

Stitch length

o.1~12.7mm(Min.Resolution0.1mm)

Scale-up/down function

10~200%for each×.&Y.axis(0.1%increment/step)

Max.number of stitches

8000stitches/pattern

Needle

DP×17﹟18

Hook

Large size shuttle hook

Work holder lift

18mm

Stepping foot lift

20mm

Stepping foot stroke

4~10mm

Presser foot system

Pneumatic

Main driving motor

500W Direct servo motor

Power

200V 1 phase/380V 3 phase(±10%)/600VA

Max

180kg

Measurement

1200mm(W) ×1150mm(D) ×1,170mm(H)
