品名：縮水定型機

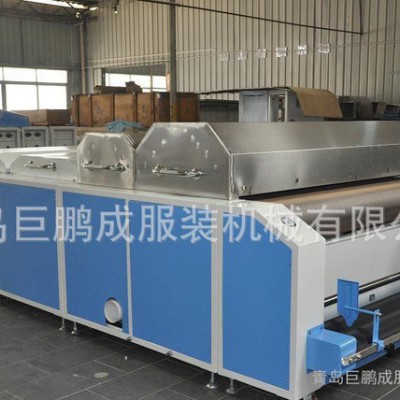

Products name: Large size shrinking forming machine

性能特點：
Performance features:

本機采用蒸汽預熱、預縮、烘干設計，使預縮過的布料更加柔和、平整?？p制過程不再有針孔和縫后短碼現象，同時橫幅與縱幅拼縫時不會產生變形，比同類機型更加節能和環保。
This machine has Steam preheating, pre shrinking, drying - design, After shrinking cloth become softer, smooth. The sewing process no longer has the phenomenon of pinhole and shorten, without deformation when the longitudinal web patchwork banner,more energy saving and environmental protection than similar products.

操作方便，強力吸風冷卻和擺動折疊對碼落布，蒸汽量和溫度可根據不同布料設定調節。

Easy to operate, strong suction, the steam flow rate and the temperature can be according to different fabrics setting adjustment.

采用蒸汽循環使用功能，不但減少了廢汽和水的排放，更好地加強了布料的預縮效果，從而也減少了蒸汽和電能的使用量。（比同類型新產品節省40%左右）
Use the steam cyc**nction, not only to reduce the discharge of waste gas and water, but also make higher fabric of the pre shrink effect, thus reducing the steam and energy use. (40% more than the same type of new product)

蒸汽室采用不銹鋼板制作，使其溫度更加均勻高效，布料定型效果更佳。
The steam room which is make of staubless steel, it makes the temperature more uniform and efficient, and the effect is better.

內設自動調帶和電眼監控放布功能。
This machine equipped with automatic adjustment and electronic eyes functione.

對純棉、毛呢或有漿布料可加霧化水加濕裝置，使布料預縮效果更佳，手感更好。
For cotton,wool,or a slurry can be added to spary water humidification device,so that the fabric effect is more better.

用途:

Usage:

適合于針織布、化纖料、牛仔布等布料的預縮定型。
Suit for knitted fabric,chemical fiber,denim fabric and so on.

以下是8800縮水定型機的技術參數

技術參數：

Specification parameter:

1.電源:AC380V50-60Hz
  Voltage:AC380V50-60Hz

2.工作速度：1-20m/min
  Speed:1-20m/min

3.功率：32KW
  Power:32KW

4.使用蒸汽壓力：4-7kg/cm
  Steam pressure:4-7kg/cm

5.蒸汽消耗量：200kg/h
  Steam consumption:200kg/h

6.外形尺寸：9000*2610*1600(雙蒸汽室)
  Dimensions（mm）:9000*2610*1600（Double steam room）
